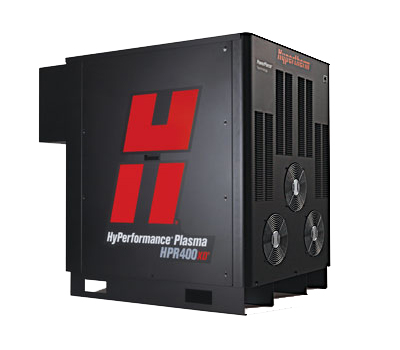

| HyPerformance HPR400XD |
|
|
|
| |
|
| |
|
|
| The HPR400XD is the fastest, thickest and most versatile HyPerformance Plasma system available on the market, and is now available with new patent-pending True Hole technology. |
|
| |
|
|
 |
Virtually dross free cutting capacity - mild steel 38 mm (1 1/2") |
|
Production pierce capacity - mild steel 50 mm (2") |
|
Maximum cutting capacity (edge start) - mild steel 80 mm (3.2") |
|
| |
|
|
|
With thousands of HyPerformance Plasma systems sold around the world, the HPR product family has become the plasma system of choice for customers who demand the most consistent cut quality, highest productivity, lowest operating cost and unmatched reliability. |
|
| |
|
|
| Capacity Mild steel |
Virtually dross free
Production (pierce)
Severence (edge starts) |
38 mm (1-1/2")
50 mm (2")
80 mm (3.2") |
| Stainless steel |
Production (pierce)
Severence (edge starts) |
45 mm (1-3/4")
80 mm (3.2" |
| Aluminum |
Production (pierce)
Severence (edge starts) |
45 mm (1-3/4")
80 mm (3.2" |
| Speed* (Mild steel) |
Optimum quality |
25 mm (1")
2159 mm/m (85 ipm) |
| Cut angle |
ISO 9013 range |
2-5 |
| Weldability |
|
Ready to weld |
Process gases by material
(Plasma/shield) |
Mild steel |
02/Air, 02/02, Ar/Air
|
| Stainless steel |
H35/N2, N2/N2, H35-N2/N2, F5/N2
Ar/Air, Ar//N2
|
| Aluminum |
H35/N2, Air/Air, H35-N2/N2
Ar/Air, Ar//N2 |
| Process amps |
Not all processes available for all materials |
30-400 |
|
| |
* Note: Take care in comparison: competitors often show maximum cutting speeds rather than speeds that deliver the
best cuts, as shown above. Cut speeds listed above deliver best cut quality, but cut speeds can be up to 50%
faster. |
|
| |
|
