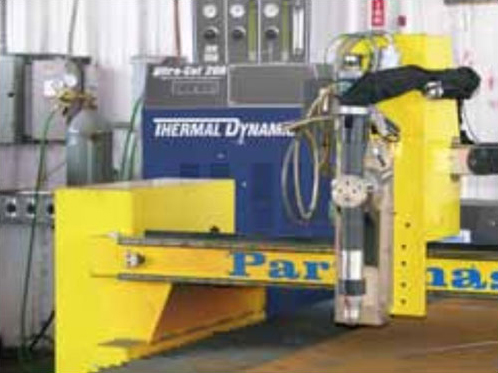

Ultra Cut 200




Features
Production cut : 1" (25 mm)
Maximum cut : 1½" (40 mm)
Handles 85% of applications
Highest cut speeds in the 200A range

Specifications
Rated Output 200 Amps
Output Range (A) 10 - 200 Amps
Output (V) 80 - 180V
Input Volts 208-230/460V, 3ph, 50-60 Hz,
400V, 3ph, 50-60 Hz,
600V, 3ph, 50-60 Hz
Input Amps @ Rated Output 130A @ 208V, 125A @ 230V, 77A @ 400V, 75A @ 460V, 78A @ 600V
Duty Cycle (@104˚F / 40˚C) 100% @ 200A @ 180V (36kW)
MAX OCV 380 VDC
Pre-Flow Gas Air @ 120 psi (8.3bar)
Plasma Gas O2, H35, N2, Air @ 120 psi (8.3bar)
Shield Gas O2, N2, Air @ 120 psi (8.3bar), H20 @ 10 GPH (0.6 l /min)
Weight Power Supply - 433 lbs. (197kg)
Dimensions H 41.5" (1054 mm) x W 27.5" (700 mm) x D 38.5" (978 mm)
(Fully Assembled Power Supply)
Warranty Two Years Power Supply & One Year Torch
Certifications CE, CCC, CSA
