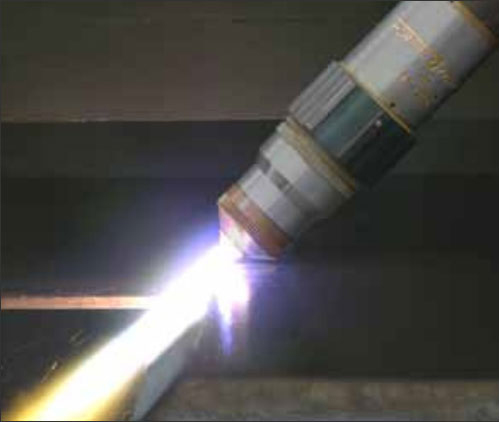

Ultra Cut 300




Features
Production cut : 1½" (40 mm)
Maximum cut : 1¾" (45 mm)
Ideal for bevel cutting up to 45° on 1½" (40 mm)
Up to 3x faster than a single oxyfuel torch

Specifications
Rated Output 300 Amps
Output Range (A) 10 - 300 Amps
Output (V) 80 - 180VDC
Input Volts 208-230/460V, 3ph, 50-60 Hz,
400V, 3ph, 50-60 Hz,
600V, 3ph, 50-60 Hz
Input Amps @ Rated Output 208A @ 208V, 188A @ 230V, 109A @ 400V, 112A @ 460V, 81A @ 600V
Duty Cycle (@104˚F / 40˚C) 100% @ 300A @ 180V (54kW)
MAX OCV 380 VDC
Pre-Flow Gas Air @ 120 psi (8.3bar)
Plasma Gas O2, H35, N2, Air @ 120 psi (8.3bar)
Shield Gas O2, N2, Air @ 120 psi (8.3bar), H20 @ 10 GPH (0.6 l /min).
Weight Power Supply - 535 lbs. (243kg)
Dimensions H 53.1" (1298 mm) x W 27.5" (700 mm) x D 38.5" (978 mm) (Fully Assembled Power Supply)
Warranty Two Years Power Supply & One Year Torch
Certifications CE, CCC, CSA
