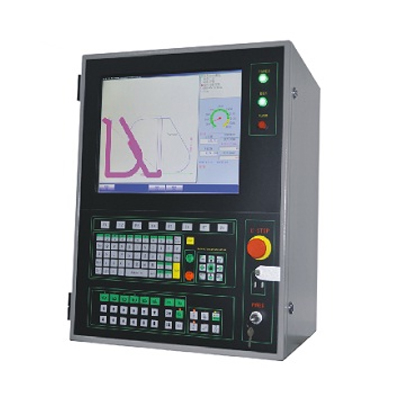

| Multi-Torch Cutting Control System: HYD-VIII |
|
|
|
| |
|
|
 |
HYD-VIII is a turn-key system for retrofit project, it offers complete 4/6torch solution for gantry machine. |
|
With our muti-torch operation console design and universal I/O card, greatly simplified the CNC system wiring work, and very easy for customer's future maintenace and operation. |
|
All CNC, servo, THC wiring completed in this system. |
|
We can share this design to OEM manufacturers, and offer parts for OEMs to assemble their own stylish system. |
| |
|
| |
Include follow parts |
|
Upper and lower two metal cabinets |
|
17 inch Dell Monitor |
|
CNC controller: MicroHYD from us, or MicroEDGE from Hypertherm |
|
Servo: Mitsubishi E series, Panasonic A5 series. Gearbox optional |
|
Maximum 4 or 6 torches, 2 plasma simultaneosly cutting control available |
| |
|
|
THC & lifter is optional |
|
With our support, you will find the industrial-level CNC control system building can be simple as DIY work. |
| |
For details, pease send us an inquiry. |
|
| |
|
|
| Full Name of Product |
Flame/Plasma Multi-Torch Cutting Control System |
| Product Model |
HYD-VIII |
| Dimensions |
LxWxH: 455*450*670 and 350*820*625 |
| Supply Voltage |
AC220V/380V+5% 50Hz/60Hz |
| Drive mode |
Single Drive and Dual Drive |
| Control mode |
Position control and Speed control |
| Display |
17’LCD with original packing |
| Interface |
Two USB interfaces (expandable), 3 RS232 serial ports and 1 RJ45 network interface are provided on panel. |
| Cutting Mode |
Supporting flame and plasma cutting |
| Quantity of cutting torches |
Capable of controlling 6 torches simultaneously, plasma/flame torch |
| Software Language |
English-Chinese |
| Working Temperature |
-10 ~ 60℃ |
|
| |
|
