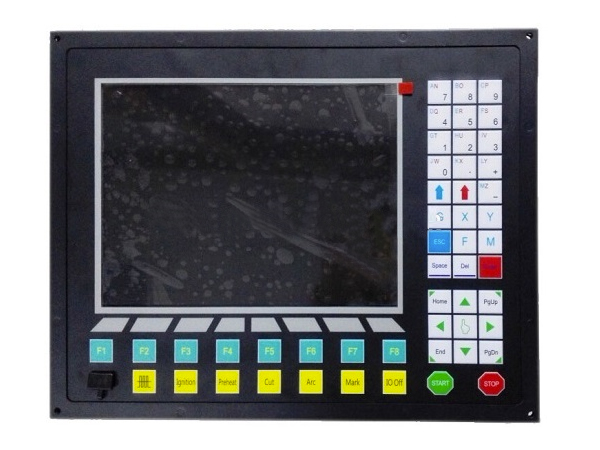

10.4 inches 800*600 dots color LCD.
Man-Machine-Dialog software and Professional Hot Key design for easy cutting operation, user-friendly as Hypertherm’s EDGE controller. |
|
Multi-language file system and menu, and the menu can be switched only by one key. |
|
DSP core can control the machine move in high speed accurately, stably and in low noise. |
|
Long-distance remote control can control the machine to move forward ,backward, left, right and cutting start, stop and so on (optional configuration). |
|
Support the EIA code (G code) and various FastCAM、FreeNest、SmartNest、IBE softwares. |
|
Compact keyboard design and easy to input files. |
|
Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle adjust…..all available and have professional solution in the CNC controller. |
|
Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds. |
|
All input and output port type and the number can be customized (normally open or normally closed) |
|
System Self-diagnosis for easy trouble-shooting. |
|
All functions and techniques can upgrade online |
|
Import and export files by single or all files. |
|
Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode. |
|
Flame and Plasma are separated in the control IO ports. |
|
Support THC, two level preheat, three level pierce in flame mode. |
|
Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner. |
|
Support edge cutting. It can save the preheat time for the thick steel plate. |
|
Movement speed can be real-time acceleration, deceleration. |
|
According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn. |
|
Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state. |
|
Automatically memorize the working situation and the last cutting point when power off. |
|
"Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong. |
|
Set up different administration authority and the corresponding password to safeguard the interests of managers. |
